Covalent bond

Lore & Background

He introduced the Lewis notation or electron dot notation, in which valence electrons are represented as dots around atomic symbols. Pairs of electrons located between atoms represent covalent bonds. Multiple pairs represent multiple bonds, such as double bonds and triple bonds. While the idea of shared electron pairs provides an effective qualitative picture of covalent bonding, quantum mechanics is needed to understand the nature of these bonds and predict the structures and properties of simple molecules. Their work was based on the valence bond model, which assumes that a chemical bond is formed when there is good overlap between the atomic orbitals of participating atoms. Covalent bonding also includes many kinds of interactions, including σ-bonding, π-bonding, metal-to-metal bonding, agostic interactions, bent bonds, three-center two-electron bonds and three-center four-electron bonds. The covalent character of a bond, as opposed to a more ionic nature, is greatest between atoms that have similar electronegativities, regardless of whether the elements are the same as each other.

Reader's Guide

Covalent bonding is fundamental to chemistry, particularly organic chemistry, where it is much more common than ionic bonding. The concept originated with Gilbert N. Covalent bonds vary in type, including sigma and pi bonds, and can be polar or nonpolar depending on electronegativity differences. Structures range from individual molecules (often gases or low-boiling liquids) to giant covalent networks like diamond and graphite, which have high melting points and electrical resistivity. Unusual bonding types include one-electron and three-electron bonds found in radical species, such as the dihydrogen cation and nitric oxide. Resonance and aromaticity describe situations where a single Lewis structure is insufficient, requiring superposition of structures to explain properties like bond order and electron configuration.

From Lewis Dots to a Named Concept

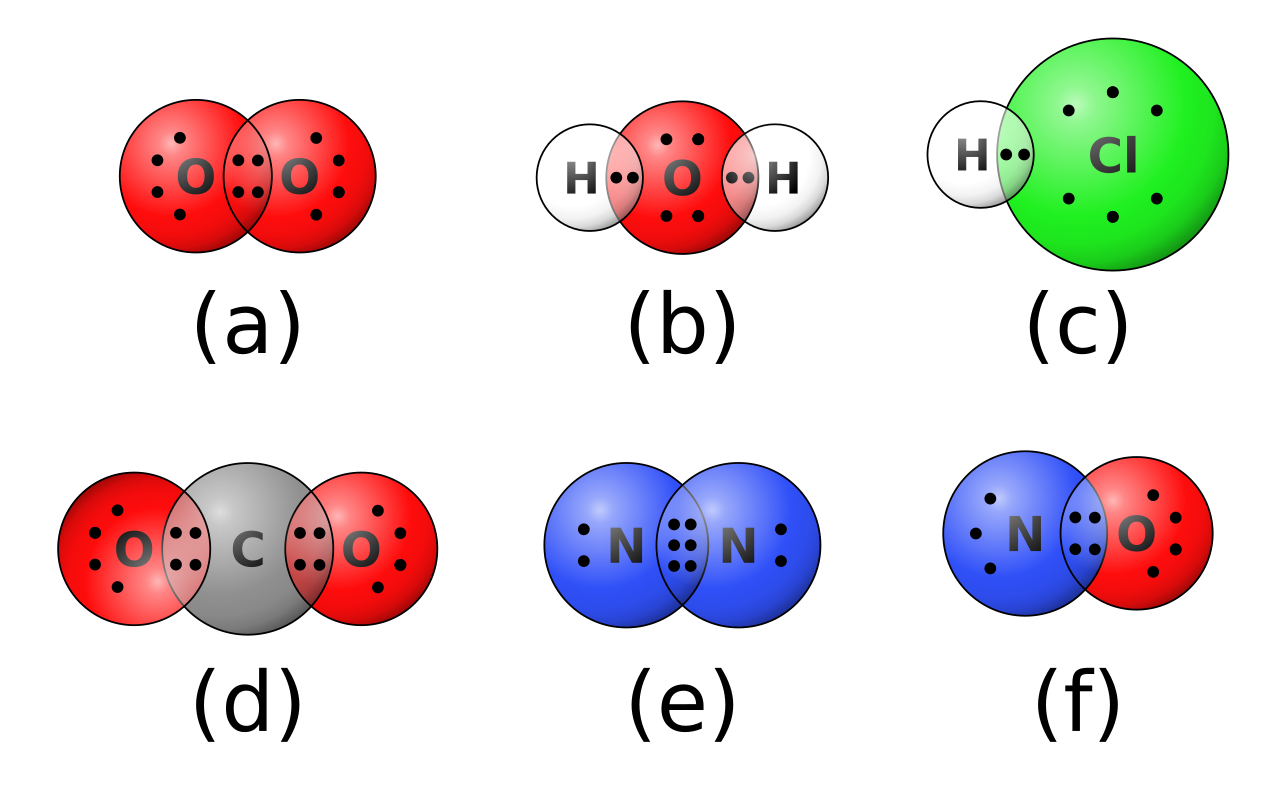

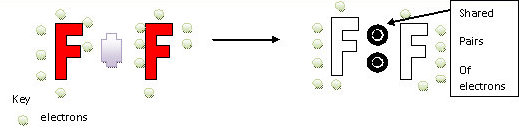

The intellectual roots of covalent bonding stretch back to 1916, when Gilbert N. Lewis described electron pairs being shared between atoms and introduced the dot-notation system still taught today. In his diagrams, valence electrons appear as dots surrounding atomic symbols, with pairs placed between atoms signifying bonds and multiple pairs indicating double or triple connections. Lewis further argued that atoms form enough bonds to fill their outer shell—carbon reaching eight electrons under the octet rule, hydrogen reaching two under the duet rule. The word itself arrived later: in 1919 Irving Langmuir published in the Journal of the American Chemical Society, coining 'covalence' to mean the number of electron pairs an atom shares with its neighbors. Nevil Sidgwick followed in the 1920s with the phrase 'co-valent link,' and Merriam-Webster traces the exact compound 'covalent bond' to 1939. The prefix 'co-' encodes partnership, reflecting the shared valence elaborated in valence bond theory.

Orbitals, Overlap, and the Quantum Underpinning

Lewis's shared-pair picture captures the qualitative essence of bonding, but a rigorous account requires quantum mechanics. In 1927 Walter Heitler and Fritz London provided the first quantum mechanical treatment of a chemical bond, working with molecular hydrogen. Their explanation rested on the valence bond model, which posits that a bond emerges when the atomic orbitals of participating atoms overlap effectively. This orbital-overlap principle generates distinct bond geometries. Sigma bonds arise from head-on orbital overlap and represent the strongest covalent interactions; a single bond is ordinarily a sigma bond. Pi bonds, weaker in character, stem from lateral overlap of p or d orbitals. A double bond between two atoms contains one sigma and one pi component, while a triple bond comprises one sigma and two pi bonds. Beyond these, the covalent family also embraces metal-to-metal bonding, agostic interactions, bent bonds, three-center two-electron bonds, and three-center four-electron bonds.

From Gases to Giant Lattices: Structural Range

Covalent bonding produces an astonishing spectrum of material architectures. At the simplest level, discrete molecules such as HCl, SO2, CO2, and CH4 possess strong internal bonds yet negligible intermolecular attraction, so they exist as gases. Moving up, molecular structures like ethanol (a low-boiling liquid) or solid iodine and solid CO2 (low-melting solids) exhibit only weak forces between molecules. Macromolecular structures extend covalent bonding into extended chains, encompassing synthetic polymers like polyethylene and nylon as well as biopolymers such as proteins and starch. At the opposite extreme, giant or network covalent structures link vast numbers of atoms into sheets, as in graphite, or three-dimensional lattices, as in diamond and quartz. These materials display high melting and boiling points, frequent brittleness, and high electrical resistivity. Elements possessing high electronegativity and the capacity to form three or four electron-pair bonds tend to build these extended architectures.

Polarity, Delocalization, and Unconventional Electron Counts

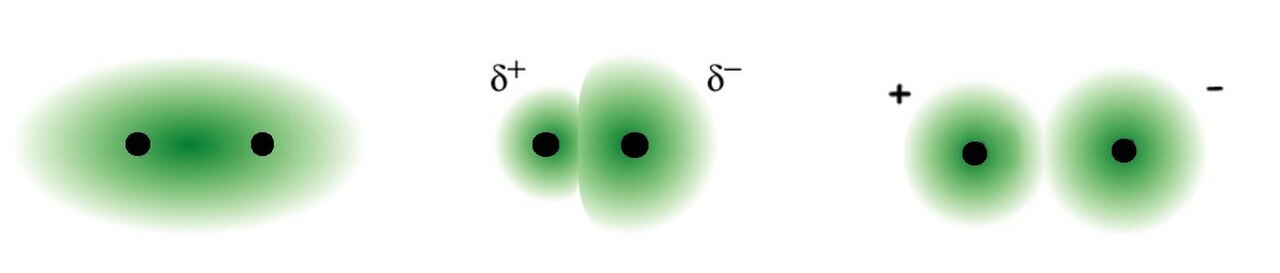

Electronegativity differences govern whether a covalent bond is polar or nonpolar. Two atoms of equal electronegativity produce a nonpolar covalent bond, as in H–H, while an unequal relationship yields a polar covalent bond, as in H–Cl. Molecular-level polarity, however, also requires geometric asymmetry; symmetric arrangements can cancel individual dipoles, leaving an overall nonpolar molecule despite polar bonds. When electron sharing extends across more than two atoms, the bonding is described as delocalized. Covalent bonding further accommodates unusual electron counts: radical species carrying an odd number of electrons can form one-electron or three-electron bonds. The dihydrogen cation, H+2, offers the simplest one-electron bond, often termed a 'half bond' because its bond energy is roughly half that of a standard two-electron bond, though exceptions do exist. In organic chemistry, covalent bonding predominates over ionic bonding, where atoms remain separate and are held together solely by electrostatic attraction.
